In the rapidly evolving landscape of industrial automation, robotic systems have become the backbone of modern manufacturing operations. These sophisticated machines rely on complex networks of cables and wiring to function effectively, transmitting power, data, and control signals with precision. However, the harsh realities of industrial environments—constant movement, extreme temperatures, chemical exposure, and mechanical stress—pose significant threats to cable integrity. Heat shrinkable tubes have emerged as an essential solution for protecting these critical connections, ensuring operational reliability and extending equipment lifespan.
Understanding Heat Shrinkable Tubes in Industrial Applications
Heat shrinkable tubes, commonly known as heat shrink tubing, are thermoplastic sleeves engineered to contract uniformly when exposed to elevated temperatures. This shrinking action creates a tight, protective seal around cables, connectors, and electrical components. The technology leverages cross-linked polymer chemistry, where molecular bonds are restructured during manufacturing to create “memory” properties that enable controlled shrinkage when heat is applied.

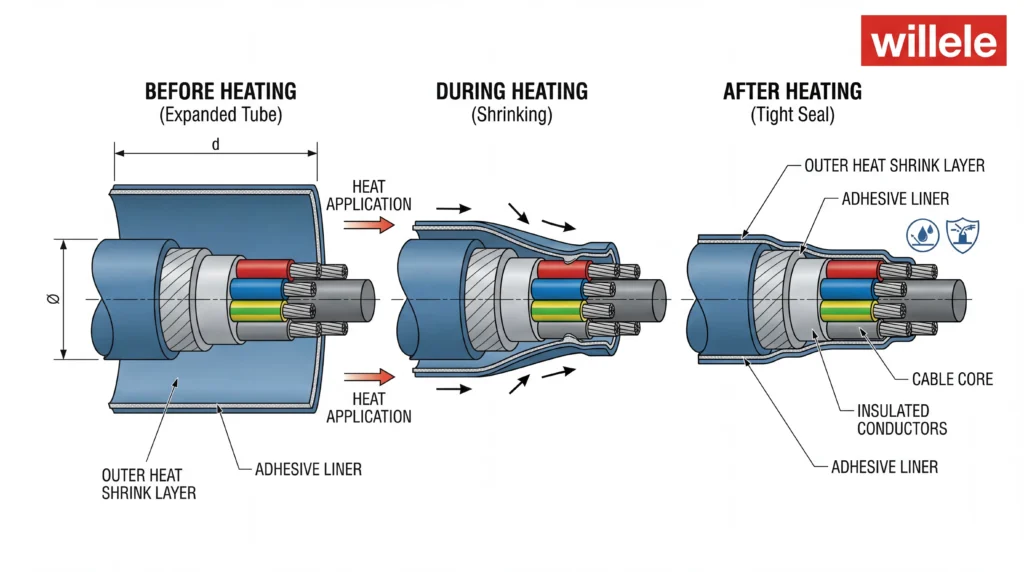

The fundamental principle behind heat shrink technology involves expanding the tubing during production and then cooling it rapidly to lock in the expanded state. When heat is reapplied during installation—typically using heat guns, ovens, or specialized equipment—the molecular structure relaxes, causing the material to return to its original, smaller diameter. This process creates an intimate fit around the protected component, delivering superior mechanical protection and environmental sealing. citation
For industrial robotics applications, heat shrinkable tubes serve multiple critical functions beyond basic insulation. They provide abrasion resistance against repetitive motion, chemical protection from industrial fluids and solvents, moisture barriers to prevent corrosion, strain relief at connection points, and cable bundling capabilities for organized wire management. These multifaceted protective properties make heat shrink tubing indispensable in automated manufacturing environments where equipment downtime translates directly to production losses. citation
Material Types and Their Industrial Robotics Applications
The selection of appropriate heat shrink material significantly impacts protection effectiveness and long-term performance. Different polymer formulations offer distinct advantages tailored to specific industrial challenges.
Polyolefin Heat Shrink Tubing represents the most widely used category in industrial robotics. Cross-linked polyolefin combines flexibility, flame retardancy, and broad chemical resistance, making it ideal for general-purpose cable protection. With operating temperature ranges typically spanning -55°C to 135°C, polyolefin tubing accommodates the thermal demands of most robotic applications. Its fast shrinking characteristics and availability in multiple colors enable efficient installation and color-coding for wire identification—critical features in complex robotic systems where dozens of cables must be managed systematically. citation
Dual-Wall Adhesive-Lined Tubing elevates protection to the next level by incorporating a thermoplastic adhesive inner layer that melts simultaneously with the outer tube’s shrinkage. This creates a hermetic seal that provides exceptional moisture resistance and environmental protection. In robotic applications exposed to washdown procedures, hydraulic fluids, or high-humidity environments, dual-wall tubing prevents moisture ingress that could cause electrical failures or corrosion. The adhesive bonding also enhances mechanical strength at cable terminations and splice points—areas particularly vulnerable to stress in constantly moving robotic arms. citation
Fluoropolymer Tubing (PTFE/FEP) addresses extreme-condition applications where standard materials prove inadequate. Robotic systems operating in high-temperature environments, such as welding cells or heat-treating operations, require cable protection capable of withstanding sustained exposure to elevated temperatures. PTFE heat shrink maintains integrity at temperatures exceeding 200°C and offers superior chemical resistance to aggressive solvents, acids, and bases. While requiring higher activation temperatures (around 250°C) and commanding premium pricing, fluoropolymer tubing ensures reliable protection in the most demanding industrial scenarios.
Elastomeric Heat Shrink Materials like Viton provide specialized protection for robotics in automotive manufacturing, metalworking, and other industries where cables encounter petroleum-based fluids. These synthetic rubber formulations resist diesel fuel, hydraulic oils, and lubricants that would degrade standard polyolefin materials. The flexibility of elastomeric tubing also accommodates the continuous flexing inherent in robotic motion without cracking or splitting—a critical consideration for cables on robotic arms that may cycle millions of times over their service life. citation
Critical Protection Challenges in Industrial Robotics
Industrial robots face uniquely demanding operational conditions that accelerate cable degradation without proper protection. Understanding these challenges illuminates why heat shrinkable tubes have become standard practice in robotic installations.
Repetitive Motion and Flexing Fatigue constitutes the primary threat to robotic cable integrity. Unlike stationary equipment, robotic arms execute thousands of movement cycles daily, subjecting cables to continuous bending, twisting, and stretching. This mechanical stress concentrates at connection points and cable routing transitions, where unprotected wires develop micro-fractures in insulation that eventually progress to conductor exposure and short circuits. Heat shrink tubing distributes stress across broader areas, reinforcing vulnerable zones and significantly extending cable flex life.
Abrasion from Environmental Contact occurs when cables rub against robotic structures, mounting hardware, or adjacent equipment during operation. Even minor abrasion gradually wears through cable jackets, exposing conductors to contamination and potential grounding faults. In overhead robotic installations, cables may contact support structures or cable management systems repeatedly. Heat shrink provides a durable outer layer that absorbs abrasive forces, protecting the underlying cable insulation from premature wear. citation
Chemical Exposure and Contamination presents constant risks in manufacturing environments. Robotic systems in automotive painting, chemical processing, or food production encounter solvents, cleaning agents, oils, and process chemicals that attack standard cable materials. Without adequate protection, these substances penetrate cable insulation, causing swelling, embrittlement, or complete breakdown of dielectric properties. Heat shrinkable tubes formulated for chemical resistance create barriers that prevent contamination from reaching critical cable components.
Moisture and Humidity Intrusion threatens electrical reliability through multiple mechanisms. Water ingress at cable terminations causes corrosion of conductors and connectors, increases leakage currents, and creates potential ground faults. In robotic systems operating in humid environments or subjected to washdown procedures, moisture protection becomes paramount. Dual-wall heat shrink with adhesive liners forms moisture-proof seals that maintain electrical integrity even under challenging conditions.
Temperature Extremes and Thermal Cycling affect cables in robotic welding, foundry operations, and other high-temperature processes. Excessive heat degrades cable insulation, while thermal cycling causes expansion and contraction that loosens connections. Heat shrink tubing rated for elevated temperatures maintains protective properties across wide temperature ranges, ensuring consistent performance regardless of environmental conditions.
Heat Shrink Tube Specifications and Selection Criteria
Proper selection of heat shrinkable tubes requires careful consideration of multiple technical parameters to ensure optimal protection and installation success.
Key Specification Parameters
| 仕様 | Typical Range | Application Consideration |
|---|---|---|
| 収縮率 | 2:1, 3:1, 4:1, 6:1 | Higher ratios accommodate larger size variations; 2:1 sufficient for most robotics applications |
| Operating Temperature | -55°C to +200°C | Must exceed maximum cable environment temperature; consider heat from nearby equipment |
| Shrink Temperature | 90°C to 250°C | Lower activation temperatures enable faster installation; must not damage underlying cables |
| 壁厚 | Thin (0.2-0.5mm), Medium (0.5-1.0mm), Heavy (>1.0mm) | Thicker walls provide superior mechanical protection; thin walls suit space-constrained applications |
| Voltage Rating | 600V to 1000V | Must exceed maximum system voltage with safety margin |
| Flame Rating | UL 224 VW-1, CSA C22.2 | Required for compliance with electrical codes and insurance requirements |
収縮率 represents the relationship between the tubing’s expanded (as-supplied) diameter and its fully recovered (shrunk) diameter. A 2:1 shrink ratio means tubing with a 20mm supplied diameter will shrink to approximately 10mm. For robotic cable protection, 2:1 or 3:1 ratios typically provide adequate coverage while maintaining reasonable wall thickness after shrinking. Higher ratios like 4:1 or 6:1 prove valuable when protecting cable bundles of varying sizes or when a single tubing size must accommodate multiple cable diameters.
Wall Thickness Selection balances protection level against installation constraints. Thin-wall tubing (0.2-0.5mm recovered thickness) suits applications where space is limited or weight must be minimized, such as cables on high-speed robotic arms where additional mass affects motion dynamics. Medium-wall tubing (0.5-1.0mm) provides the optimal balance for most industrial robotics applications, delivering robust mechanical protection without excessive bulk. Heavy-wall tubing (>1.0mm) addresses severe abrasion environments or applications requiring maximum impact resistance. citation
Temperature Ratings must account for both continuous operating conditions and potential temperature spikes. While most industrial environments maintain ambient temperatures, robotic systems near heat-generating equipment, welding operations, or furnaces experience elevated thermal exposure. Selecting tubing with operating temperature ratings exceeding maximum anticipated temperatures by 20-30°C provides safety margin and extends service life.
Sizing Methodology
Proper sizing ensures effective protection without installation difficulties. The selection process follows a systematic approach:
- Measure Cable Diameter: Determine the maximum diameter of the cable or bundle to be protected, including any connectors or irregularities.
- Calculate Minimum Expanded Diameter: The tubing’s as-supplied diameter must exceed the cable diameter by at least 20% to enable easy installation. For a 10mm cable, select tubing with minimum 12mm expanded diameter.
- Verify Recovered Diameter: After shrinking, the tubing should achieve 70-80% of the cable diameter for optimal grip without excessive compression. A 10mm cable requires tubing that recovers to approximately 7-8mm.
- Account for Connectors: When protecting cable assemblies with connectors, the tubing must slide over the largest connector diameter before shrinking. This often necessitates higher shrink ratios or split-tubing alternatives.
Installation Best Practices for Robotic Applications
Successful heat shrink tube installation requires attention to technique and environmental factors to achieve reliable, long-lasting protection.
Surface Preparation forms the foundation of effective installation. Cables should be clean and dry, free from oils, dust, or contamination that might prevent proper adhesion (particularly critical for dual-wall adhesive-lined tubing). Wiping cables with isopropyl alcohol removes residues and ensures optimal bonding. Any damaged cable insulation should be repaired before applying heat shrink protection.
Tubing Positioning requires careful planning, especially in complex robotic cable harnesses. Position tubing over the area requiring protection before making final cable connections, as tubing cannot be installed after connectors are attached (unless using split or wrap-around varieties). For cable bundles, arrange individual cables neatly before applying heat shrink to prevent trapped air pockets or irregular shrinking.
Heat Application Technique significantly impacts final quality. Industrial heat guns remain the most common installation tool, providing controlled, directed heat. Begin heating at the center of the tubing and work toward the ends using smooth, sweeping motions to ensure uniform shrinkage. Maintain the heat gun at the manufacturer-recommended distance (typically 15-20cm) to prevent overheating or scorching. For dual-wall tubing, continue heating until adhesive flows from the tube ends, confirming complete seal formation. citation
Quality Verification confirms proper installation. Visually inspect for uniform shrinkage without wrinkles, bubbles, or gaps. The tubing should conform tightly to the cable contour with no loose sections. For adhesive-lined products, verify adhesive visibility at tube ends. Test mechanical security by attempting to rotate or slide the tubing—properly installed heat shrink should resist movement.
Comparative Analysis: Heat Shrink vs. Alternative Protection Methods
Industrial robotics offers several cable protection approaches, each with distinct advantages and limitations.
| Protection Method | Advantages | Disadvantages | Best Applications |
|---|---|---|---|
| 熱収縮チューブ | Excellent conformity, moisture sealing, wide material options, permanent installation | Requires heat source, not easily removable, pre-installation planning needed | General cable protection, terminations, strain relief, moisture-prone areas |
| Braided Sleeving | Expandable for easy installation, allows cable additions, good abrasion resistance | No moisture protection, less conforming fit, can fray at cuts | Cable bundling, frequently modified harnesses, abrasion protection |
| Spiral Wrap | Easily installed on existing cables, allows cable breakouts, reusable | Poor environmental sealing, can unwind under stress, limited abrasion protection | Temporary installations, service loops, cable organization |
| Conduit Systems | Maximum mechanical protection, supports long cable runs, allows cable replacement | Rigid, space-intensive, higher cost, limits robot motion range | Fixed cable routing, overhead installations, extreme impact environments |
| Cable Jacketing | Integrated protection, no installation required, clean appearance | Limited material options, no retrofit capability, higher cable cost | New installations, standardized applications, OEM equipment |
Heat shrinkable tubes excel in applications requiring permanent, conforming protection with environmental sealing. The technology’s versatility across materials, sizes, and performance characteristics makes it adaptable to virtually any robotic cable protection scenario. While initial installation requires more effort than slip-on alternatives, the resulting protection quality and longevity justify the investment for critical robotic systems.
Industry Standards and Compliance Requirements
Industrial robotics installations must comply with various safety and performance standards that govern cable protection materials and methods.
UL and CSA Certifications verify that heat shrink tubing meets North American electrical safety requirements. UL 224 VW-1 flame rating indicates the material has passed vertical flame tests, demonstrating self-extinguishing properties critical for preventing fire propagation. CSA C22.2 certification provides equivalent validation for Canadian installations. Specifying certified tubing ensures compliance with electrical codes and satisfies insurance requirements.
Military and Aerospace Specifications like SAE-MIL-DTL-23053/5 establish rigorous performance criteria for heat shrink tubing used in demanding applications. While industrial robotics typically don’t require military-grade materials, these specifications provide useful benchmarks for high-reliability installations. Many industrial users reference MIL-specs when procuring heat shrink tubing to ensure consistent quality and performance characteristics. citation
ASTM Standards govern material properties and testing methodologies. ASTM D2671 specifies test methods for heat-shrinkable tubing for electrical use, establishing standardized procedures for measuring shrink ratio, tensile strength, and other critical parameters. Compliance with ASTM standards ensures product consistency across manufacturers.
RoHS and REACH Compliance addresses environmental and health concerns by restricting hazardous substances in electrical materials. Heat shrink tubing used in European markets or exported equipment must comply with these directives, limiting lead, mercury, cadmium, and other restricted materials. Willele heat shrinkable tubes meet international environmental standards, supporting global equipment deployment.
Cost-Benefit Analysis and ROI Considerations
Implementing comprehensive cable protection with heat shrinkable tubes represents an investment that delivers substantial returns through multiple mechanisms.
Downtime Reduction provides the most significant economic benefit. Unplanned robotic system failures due to cable damage typically cost manufacturers $5,000-$50,000 per hour in lost production, depending on industry and production value. A single prevented failure justifies the cost of protecting an entire robotic cell. Heat shrink tube installation costs typically range from $50-$200 per robot depending on cable complexity, while preventing just one hour of downtime recovers this investment many times over.
Extended Cable Life reduces replacement frequency and associated labor costs. Unprotected robotic cables in demanding environments may require replacement every 1-2 years, while properly protected cables often exceed 5-10 years of service life. This 3-5x lifespan extension translates to substantial savings in both materials and installation labor, particularly for complex cable harnesses requiring hours of skilled technician time to replace.
Reduced Maintenance Requirements lower ongoing operational costs. Protected cables require less frequent inspection and exhibit fewer intermittent faults that consume troubleshooting time. Maintenance teams can focus on productive activities rather than reactive cable repairs, improving overall operational efficiency.
Quality and Safety Improvements prevent defects caused by electrical faults and reduce workplace hazards from exposed conductors. In industries with stringent quality requirements, preventing a single contaminated production batch due to robotic malfunction can save hundreds of thousands of dollars.
Willele Heat Shrinkable Tubes: Engineered for Industrial Excellence
As a specialized B2B electrical equipment manufacturer, Willele delivers heat shrinkable tube solutions engineered specifically for the demanding requirements of industrial robotics and automation. Our product portfolio encompasses the full spectrum of materials, sizes, and performance characteristics required for comprehensive cable protection.
Material Excellence: Willele heat shrink tubing utilizes premium cross-linked polymers formulated for superior mechanical properties, chemical resistance, and long-term stability. Our polyolefin formulations provide optimal balance of flexibility and durability, while our dual-wall adhesive-lined products deliver industry-leading moisture protection. For extreme-condition applications, Willele offers fluoropolymer and elastomeric options that maintain integrity where standard materials fail.
Comprehensive Size Range: Our product line covers diameters from 1.5mm to 200mm in various shrink ratios, ensuring appropriate solutions for individual wire protection through large cable bundle management. Custom sizing and cutting services accommodate specific application requirements, eliminating waste and simplifying inventory management.
Quality Assurance and Certification: Every Willele heat shrink tube batch undergoes rigorous testing to verify compliance with international standards including UL, CSA, RoHS, and REACH. Our quality management systems ensure consistent performance characteristics across production runs, providing the reliability industrial robotics applications demand.
Technical Support and Application Engineering: Willele’s experienced technical team assists customers in material selection, sizing calculations, and installation methodology development. We partner with integrators and end users to optimize cable protection strategies for specific robotic applications, ensuring maximum protection effectiveness and installation efficiency.
Global Supply Capability: With efficient logistics networks and strategic inventory positioning, Willele delivers heat shrinkable tubes to industrial customers worldwide. Our commitment to supply chain reliability ensures that production schedules remain uninterrupted by material shortages.
Future Trends in Robotic Cable Protection
The evolution of industrial robotics drives continuous innovation in cable protection technologies, with several emerging trends shaping future developments.
Smart Materials and Condition Monitoring: Research into heat shrink tubing embedded with sensors or conductive elements may enable real-time monitoring of cable health. These intelligent protection systems could detect temperature anomalies, moisture ingress, or mechanical stress before failures occur, enabling predictive maintenance strategies.
Sustainable and Recyclable Materials: Environmental considerations are driving development of heat shrink formulations based on bio-derived polymers or materials designed for easier recycling. As industrial sustainability initiatives expand, demand for environmentally responsible cable protection solutions will increase.
Rapid Installation Technologies: Innovations in heat shrink activation methods, including induction heating and chemical activation, may reduce installation time and improve consistency. These technologies could prove particularly valuable for high-volume robotic installations where labor efficiency significantly impacts project economics.
Collaborative Robot Adaptations: The growth of collaborative robots (cobots) working alongside humans creates new cable protection requirements emphasizing safety, flexibility, and aesthetics. Heat shrink solutions for cobot applications may incorporate softer materials, enhanced visibility features, and designs that minimize pinch points.
Frequently Asked Questions
Q: What is the typical lifespan of heat shrink tubing on robotic cables?
A: Properly selected and installed heat shrink tubing typically lasts 5-10 years in industrial robotic applications, often matching or exceeding the cable’s service life. Lifespan depends on environmental factors including temperature extremes, chemical exposure, UV radiation, and mechanical stress levels. Regular visual inspections help identify any degradation requiring replacement.
Q: Can heat shrink tubing be removed and reused?
A: No, heat shrink tubing cannot be effectively removed and reused. The shrinking process permanently alters the molecular structure, preventing re-expansion. When cable repairs or modifications are necessary, the existing heat shrink must be cut away and replaced with new tubing. For applications requiring frequent access, consider alternative protection methods like braided sleeving or spiral wrap.
Q: What shrink ratio should I choose for robotic cable protection?
A: For most industrial robotics applications, 2:1 or 3:1 shrink ratios provide optimal performance. Use 2:1 when cable diameters are consistent and well-defined. Choose 3:1 or higher ratios when protecting cable bundles with varying sizes, accommodating connectors, or when a single tubing size must cover multiple cable diameters. Higher ratios offer greater flexibility but result in thicker walls after shrinking.
Q: How do I protect cables with pre-installed connectors?
A: Three approaches address this challenge: (1) Use heat shrink with sufficiently high shrink ratio to slide over the connector before shrinking, (2) Specify split or wrap-around heat shrink tubing designed for installation on assembled cables, or (3) Plan cable assembly sequence to install heat shrink before attaching connectors. For critical applications, option 3 provides the most reliable protection.
Q: What temperature should I use when installing heat shrink tubing?
A: Installation temperature depends on the specific material. Polyolefin tubing typically requires 90-120°C, while fluoropolymer materials need 250°C or higher. Always follow manufacturer specifications. Use temperature-controlled heat guns when available, and maintain recommended distance from the tubing (typically 15-20cm) to prevent overheating. Look for uniform shrinkage and, for adhesive-lined tubing, adhesive flow from tube ends as indicators of proper activation.
Q: Are there color-coding standards for heat shrink tubing in robotics?
A: While no universal standard exists, many facilities adopt color-coding systems for cable identification. Common practices include using specific colors for power cables (red/black), signal cables (blue/green), and communication lines (yellow/white). Willele offers heat shrink tubing in a comprehensive color range to support customer-specific identification schemes. Establish and document color-coding standards during system design to facilitate future maintenance and troubleshooting.
